Full Automatic Hydraulic Control Lake Weed Harvester Used in River

Product Categories

Weifang Hairui Xinsheng Environmental Protection Equipment Manufacturing Co., Ltd.

Contact Now

Full Automatic Hydraulic Control Lake Weed Harvester Used in River

Model NO. : H-4

Certification : GMA, QS, FDA, ISO, CE

Automation : Automatic

Screw : Multi-Screw

Treatment : Broken

Application : River . Lake Reservoir

Harvest Methord : Hydraulic Cutting

Power Source : Diesel Oil

Drive Type : Paddle Wheel

Transmission : Hard Shaft

Engine Brand : Weichai

Capacity : 7.5m3-50m3/H

Total Length : 12.5-30m

Collecting Width : 3.1-5m

Collecting Depth : 1.2-2m

Work Speed : 3.5-5km/H

Power : 60-150kw

Endurance Ability : 24h

Passenger : 1-2 Person

Draught : 0.55-1m

Transport Package : Wooden Box

Specification : Capacity 1- 20 ton

Origin : China

HS Code : 8467890000

Production Capacity : 5000 Set /Year

Package Size : 1300.00cm * 500.00cm * 300.00cm

Package Gross Weight : 10000.000kg

Lead Time : 20 days (1 - 1 Sets) To be negotiated ( > 1 Sets)

Contact Now

Full automatic hydraulic control lake weed harvester used in river

1. General description :

1	The vessel with single plate and single deck .the structure of the whole welding . it is drove by the double paddle wheel.
2	This vessel can first collect the water hyacinth and water lettuce .High efficiency to collect .reduce volume and break the water hyacinth.
3	This vessel has double cabins structure the cabin in front is the collection chamber . the cabin after is the storehouse and conveying .the cabin in front and after adopts stainless steel mess belt of Great wall ,transport smoothly ,ensure the working smoothly the water hyacinth from the after cabin is transported to the port and trash truck .
4	This vessel is full automatic hydraulic machinery just one person can achieve the automatic control operation of the vessel

2.Advantage :

1	Green and environmental protection
2	High efficiency low cost
3	Outstanding durable reliable performance
4	High strength transportation
5	Long service and warrant
6	High quality and strict testing
7	Energy -efficient easy maintenance
8	High Cost performance

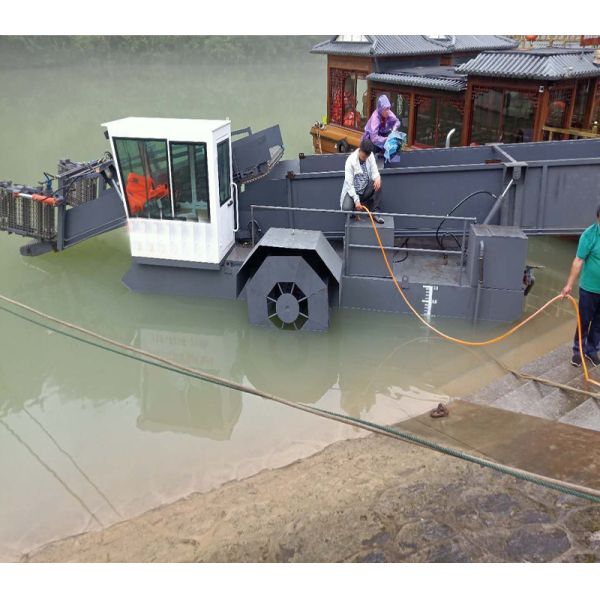

3. Product picture :

Full Automatic Hydraulic Control Lake Weed Harvester Used in River

4. Basic parameter :

Type	Model	C-60	C-75	C-90
*Hull size (LWH)*	Hull size	7.2m	8.8m	9.6m
	Total length	12.5m	14.6m	17.5m
	Hull width	3.0m	3.2m	3.4m
	Total width	4.0m	4.5m	4.8m
	Hull height	1.1m	1.1m	1.16m
	Draught	0.55m-0.75m	0.6m-0.75m	0.6m-0.75m
	Total height	2.9m	2.9m	4.5m
Working capacity	Cutting width	3.1m	3.5m	3.8m
	Cutting depth	1.2m	1.2m	1.5m
	Carrying capacity	7.5m3	15m3	22m3
	Max. Speed	6km/h	7km/h	8km/h
	Work speed	3.5km/h	3.5km/h	3.5km/h
	Power	60kw	75kw	90kw
	Endurance ability	24h	24h	24h
	Type of drive Paddle wheel or propeller
	Passenger	1-2	1-2	1-2

5.Customer visit our factory :

6.Company profile:

Our Company covers an area of 20000 square meters. The company adopts modern enterprise management concept. seiko manufacturing. forge ahead. the product quality is superior to the domestic and foreign counterparts products. Company technical force is abundant. the craft is advanced. complete range of articles. in strict accordance with ISO9001 standards. organization.design. production. sales and management.

Our Company sets scientific research and development. engineering design. installation. debugging. production services for the integration of domestic comprehensive backbone enterprises. products with free-pollution disposal equipment. garbage disposal equipment. high concentration wastewater treatment equipment. organic fertilizer production equipment. air treatment equipment. sludge treatment equipment. automobile processing equipment such as environmental protection equipment . And can design according to customer demand. customization of all kinds of efficient and practical equipment and production line.

7. Factory certification :

Full Automatic Hydraulic Control Lake Weed Harvester Used in River Images
